What is an MC4 Connector?
MC4 Connector
An MC4 connector is a small plastic part with metal inside. It connects solar panels to each other or to a power device. People use them to carry electricity safely.
The name “MC4” means “Multi-Contact, 4 millimeters.” That 4 mm is the size of the metal pin inside.

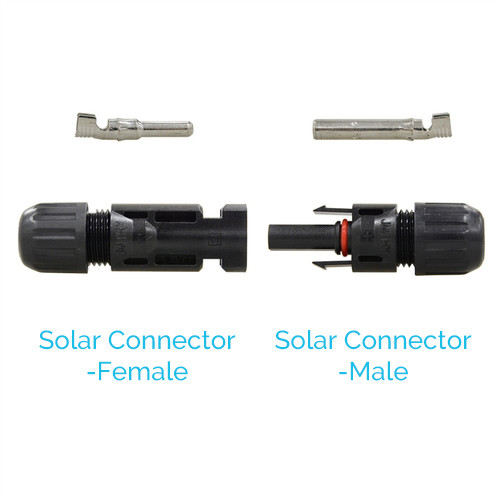

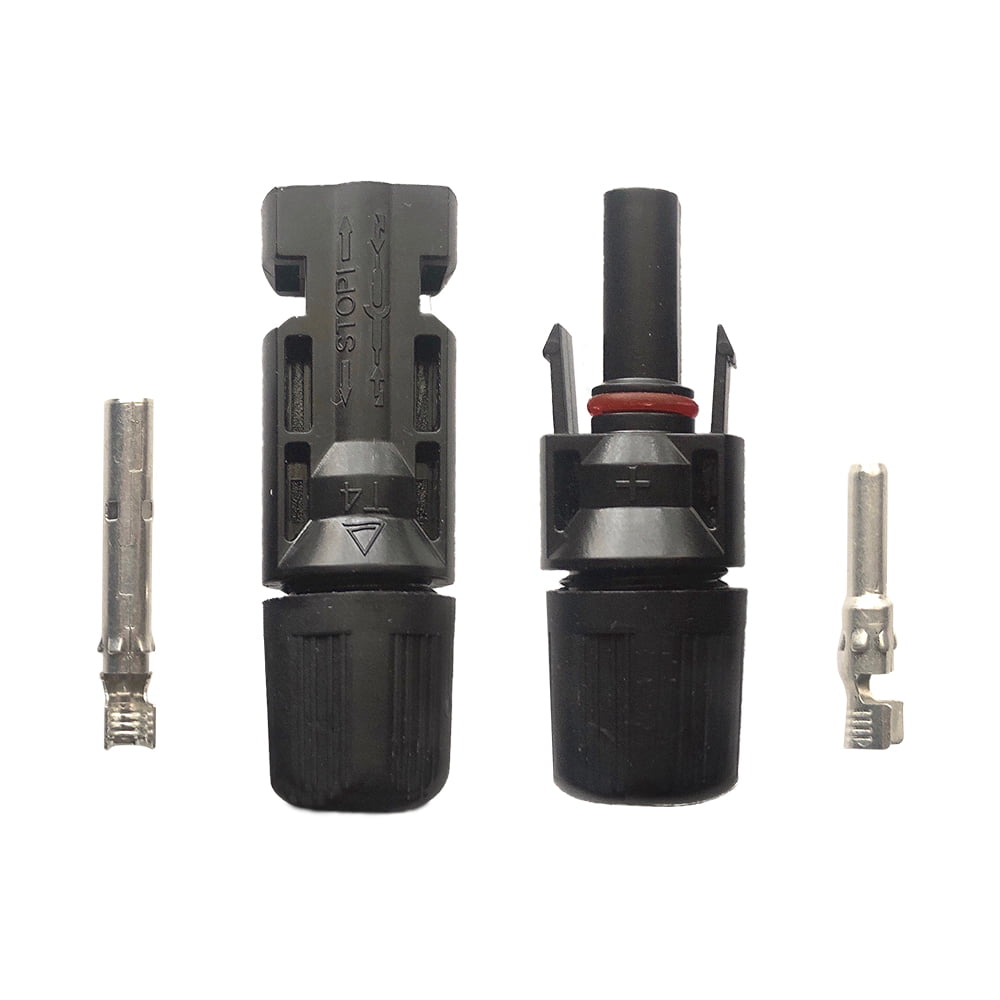

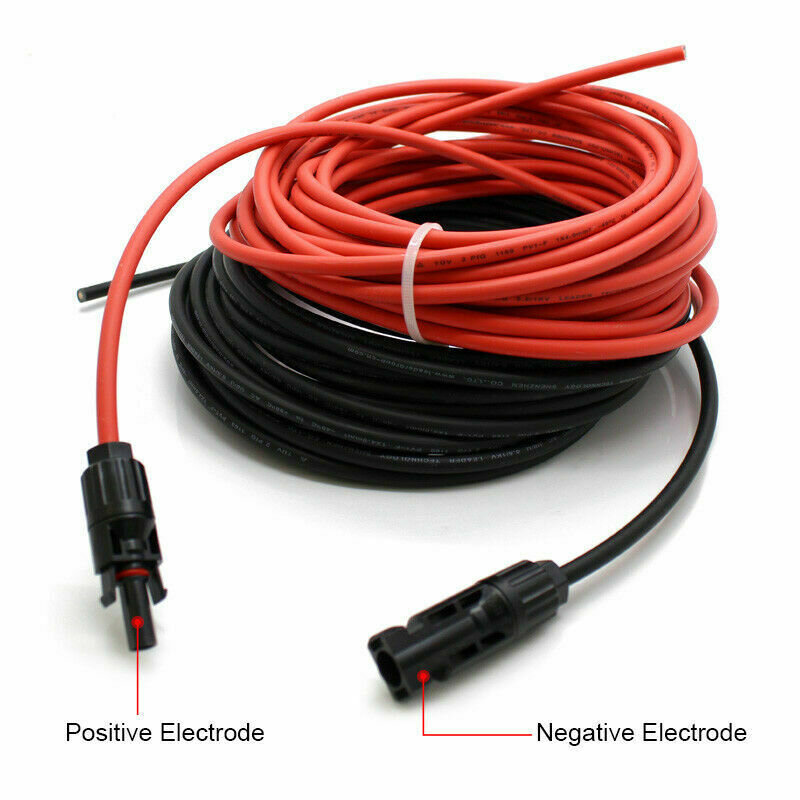

Most solar panels use MC4 connectors now. These connectors are strong, safe, and simple to use. One is male (with a pin), and the other is female (with a socket). They snap together with a click and stay tight, even outside in the rain.
MC4 connectors are made for outdoor use. They can handle:
- Rain and dust
- Hot sun and cold snow
- High voltages from solar panels
An MC4 connector is used to connect solar panels with DC cables that carry DC power from the panels to the inverter. These connectors are the only certified and authorised options to do so. The process has to be so spotless that specialised MC4 crimping tools are needed to make this connection.
Disconnecting them anytime will harm neither the connections nor the wires they are linked to. If you are someone who appreciates living a sustainable life, MC4 connectors are a necessity for you!
All modern solar panels use the MC4 solar connectors. These connectors have an IP67 rating. It means they’re waterproof and dustproof. They perform well with both 4mm and 6mm solar wires.

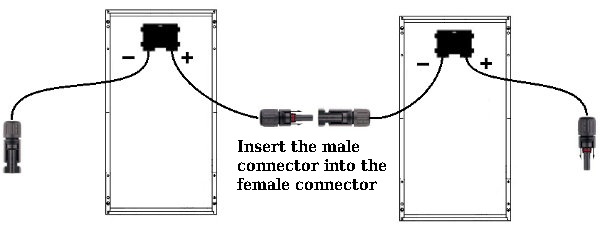

The MC4 connector is designed to meet international standards and is designed to be waterproof, UV resistant, and corrosion resistant. The MC4 connector is rated up to 1000V DC and is rated for temperatures ranging from -40°C to +125°C. The connector also features a quick-release mechanism for easy connection and disconnection, which eliminates the need for tools or other equipment. To connect the MC4 connector, the male and female connectors must be lined up and then the locking tab must be pushed down to secure the connection.
The MC4 connector is a reliable and convenient way to quickly and securely connect components for photovoltaic systems. Its two-piece design, waterproof construction, and quick-disconnect feature make it ideal for outdoor applications.
What safety measures should I take when connecting an MC4 connector?
When connecting an MC4 connector, safety is of paramount importance. The first step in safely connecting an MC4 is to make sure the connectors are compatible, and that the connector pins fit correctly. Additionally, it is important to ensure that the solar panel, inverter, and/or battery being connected is powered off before attempting to connect the MC4. It is also recommended to use insulated tools to connect and disconnect the connectors, to avoid the risk of electric shock. Additionally, it is important to ensure the negative and positive polarity are connected correctly, as this can lead to fires or other hazardous situations if done incorrectly.it is important to wear protective equipment, such as gloves, glasses, and protective clothing, while connecting the MC4, to protect against any potential injuries.
How many amps can MC4 handle?
The most common MC4 connectors are rated for 30 amps, although some can handle higher ratings. It is important to note that the total current rating of the cable must not exceed the rating of the connector. For instance, if a 30 amp MC4 connector is used, then the cable should be rated at 30 amps or less. If the cable rating is greater than the rating of the connector, then the current will exceed the connector’s current capacity and can create a fire hazard.
